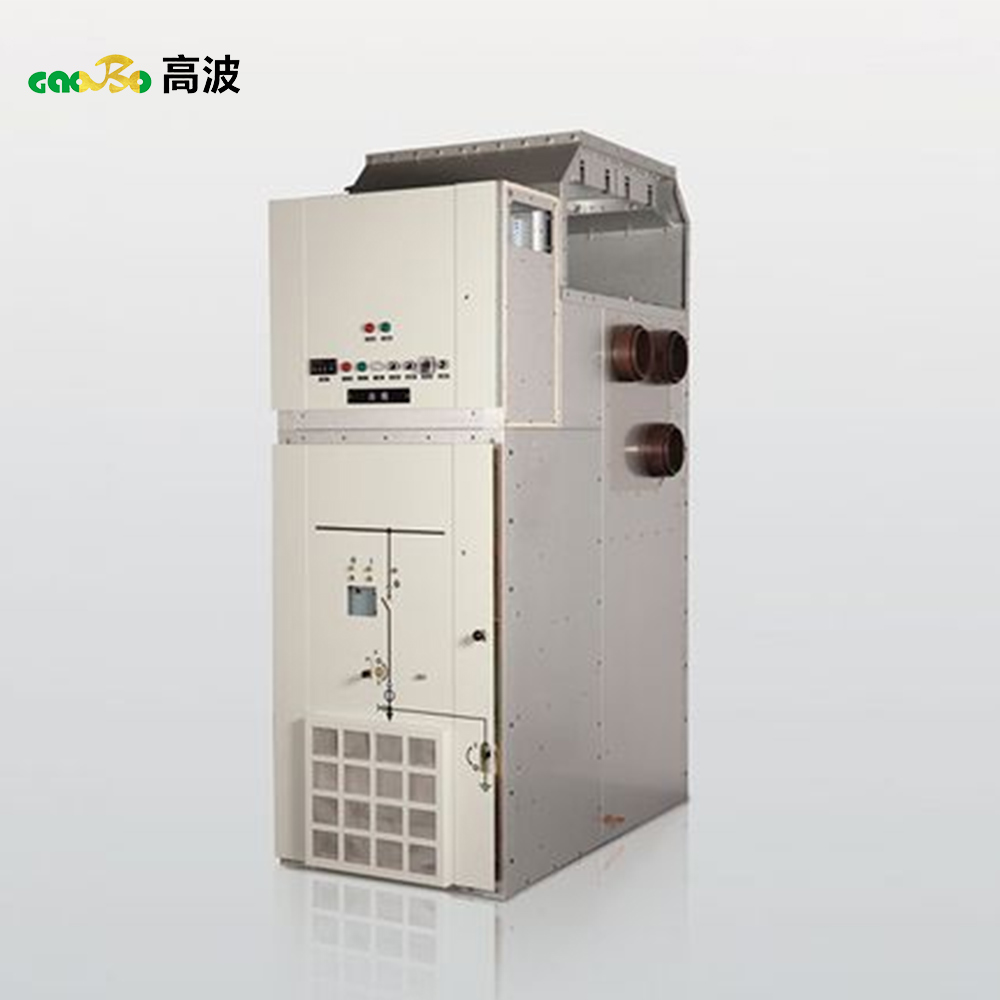

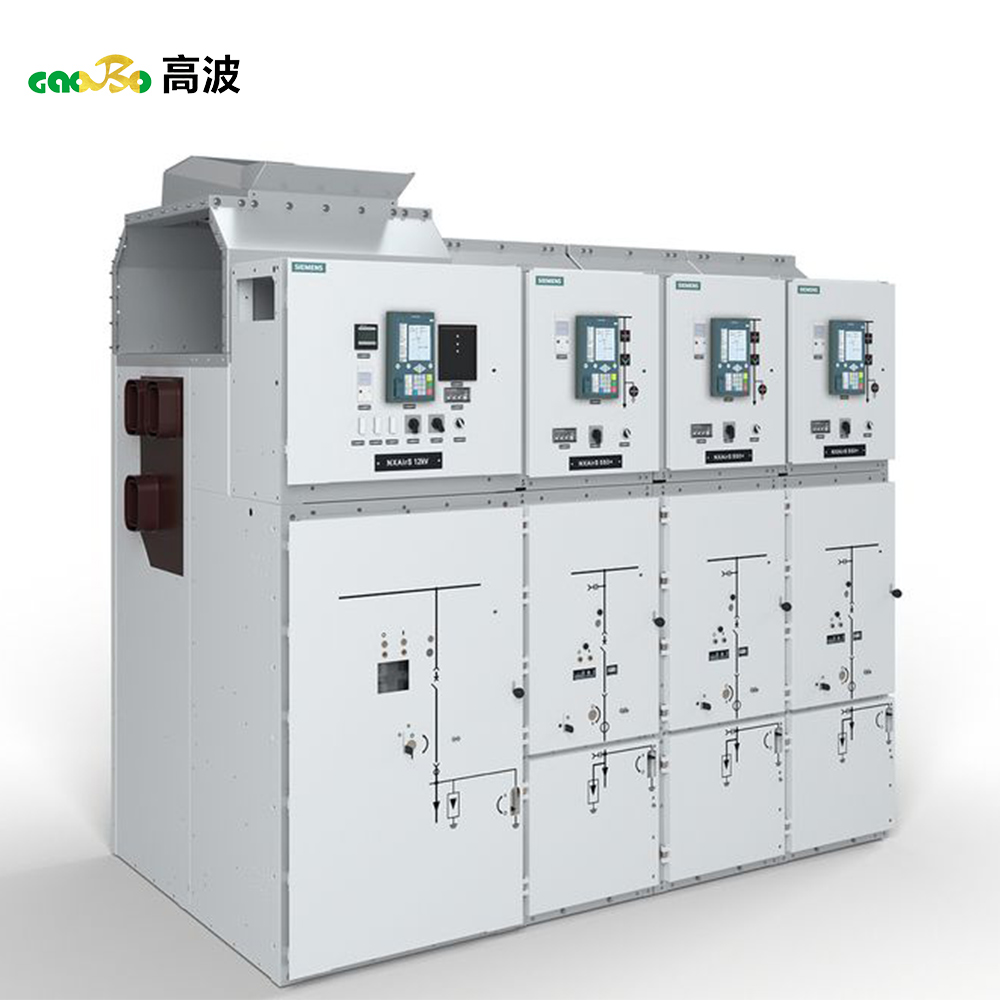

Wholesale Custom Siemens NXAirs LP Medium Voltage Switchgear Cabinet
Production Description:
NXAirS LP is a new type of medium-voltage metal-enclosed switchgear designed by Siemens. As a unified medium-voltage power distribution solution tailored to customer needs, it offers exceptional safety, reliability, and flexibility. Siemens collaborates with qualified medium-voltage switchgear manufacturers that meet Siemens standards, making them qualified "technology partners" for NXAirS LP, thus ensuring this versatile medium-voltage air-insulated switchgear better meets your requirements.
Product Features:
1. Safe and reliable, verified by complete type testing
2. Disaster suppression, proprietary pressure relief, and absorption device
3. Space-saving, compact, and flexible structural design
4. High efficiency and environmental protection, rational main busbar distribution, and air insulation
5. Standardized operation, interlocking design
Technical Parameters：
| Description | Unit | Parameter |
| Rated Voltage | kV | 12 |
| Rated Current | kA | 630, 1250, 2000, 2500, 3150, 4000 |
| Rated Power-frequency Withstand Voltage (phase-to-phase, phase-to-ground, and Across the Break; Isolation Break) | kV | 42 / 48 |
| Rated Lightning Impulse Withstand Voltage (Phase-to-phase, Phase-to-ground, and Across the Break; Isolation Break) | kV | 75 / 85 |
| Rated Short-circuit Breaking Current | kA | 25, 31.5, 40 |
| Rated Short-time Withstand Current | kA/s | 25/4, 31.5/4, 40/4 |
| Short-time Withstand Current of the Grounding Switch | kA/s | 25/4, 31.5/4, 40/4 |
| Rated Short-circuit Making Current | kA | 63, 80, 100 |
| Rated Peak Withstand Current | kA | 63, 80, 100 |
| Protection Level | - | IP4X |
