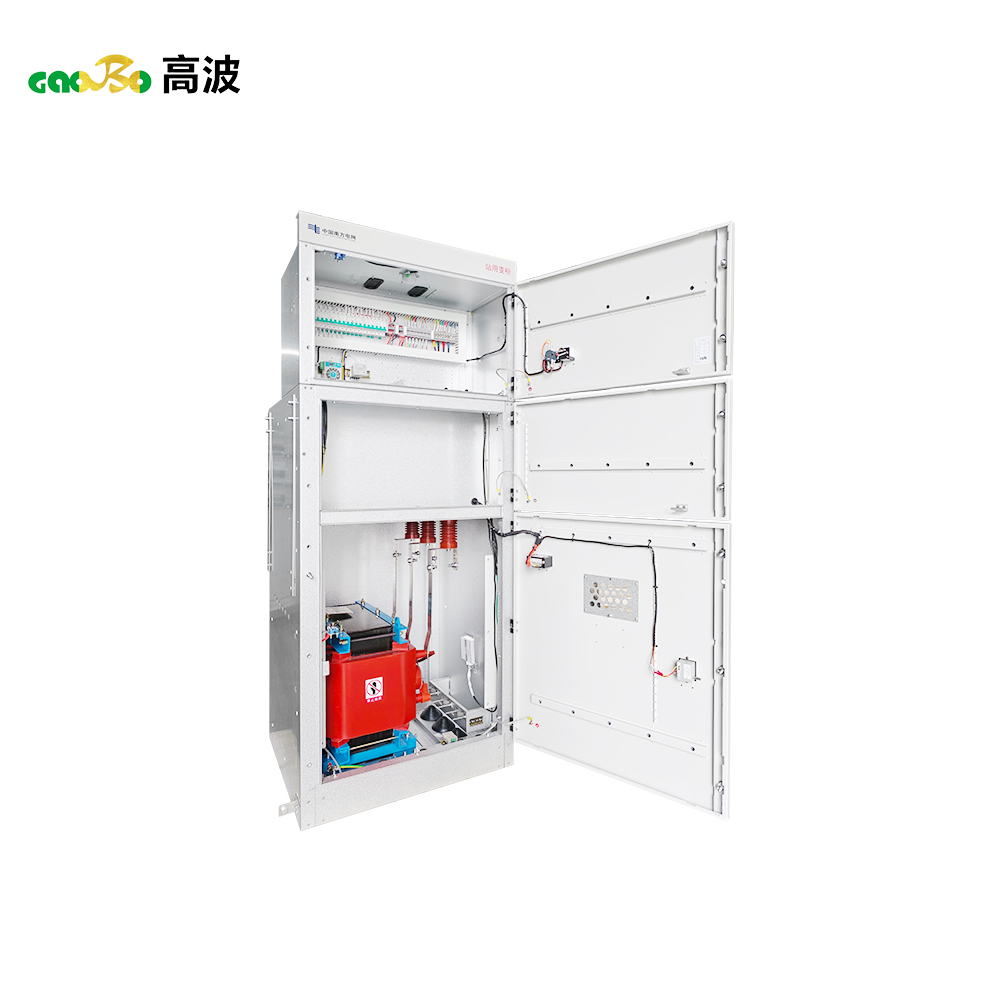

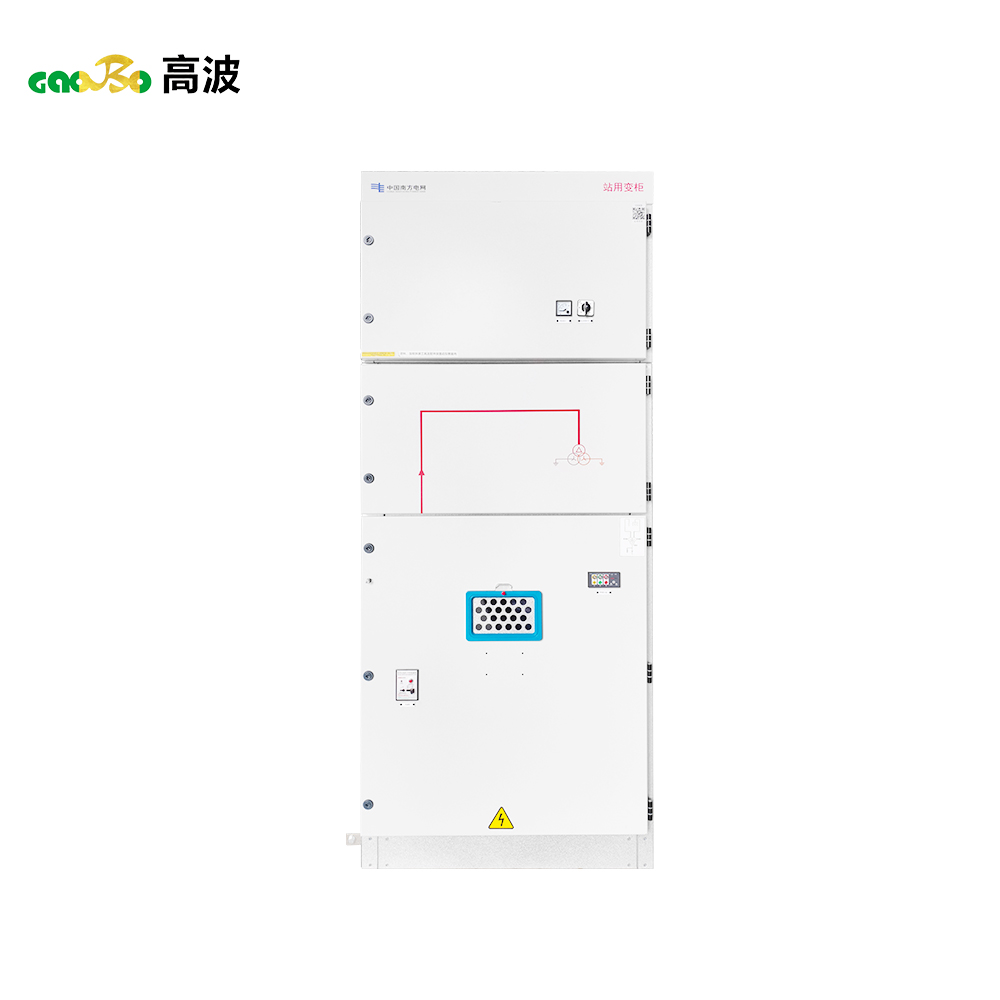

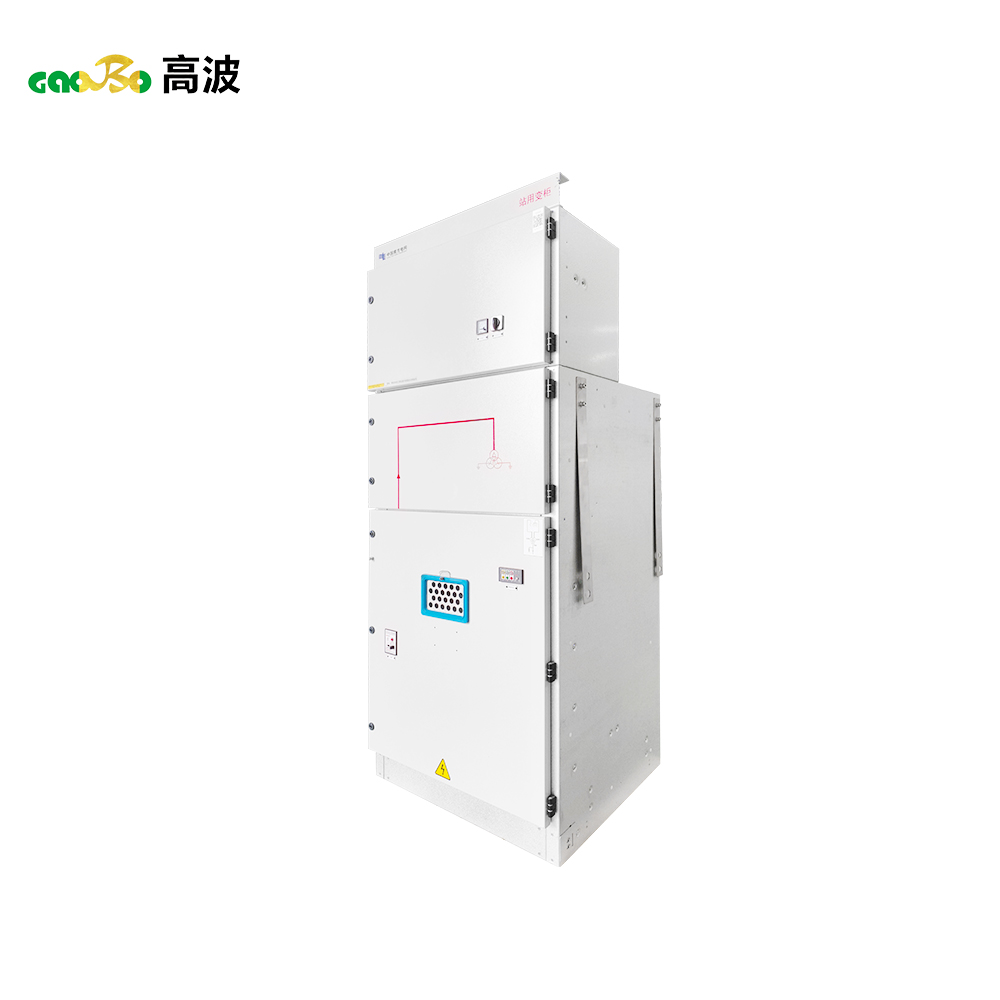

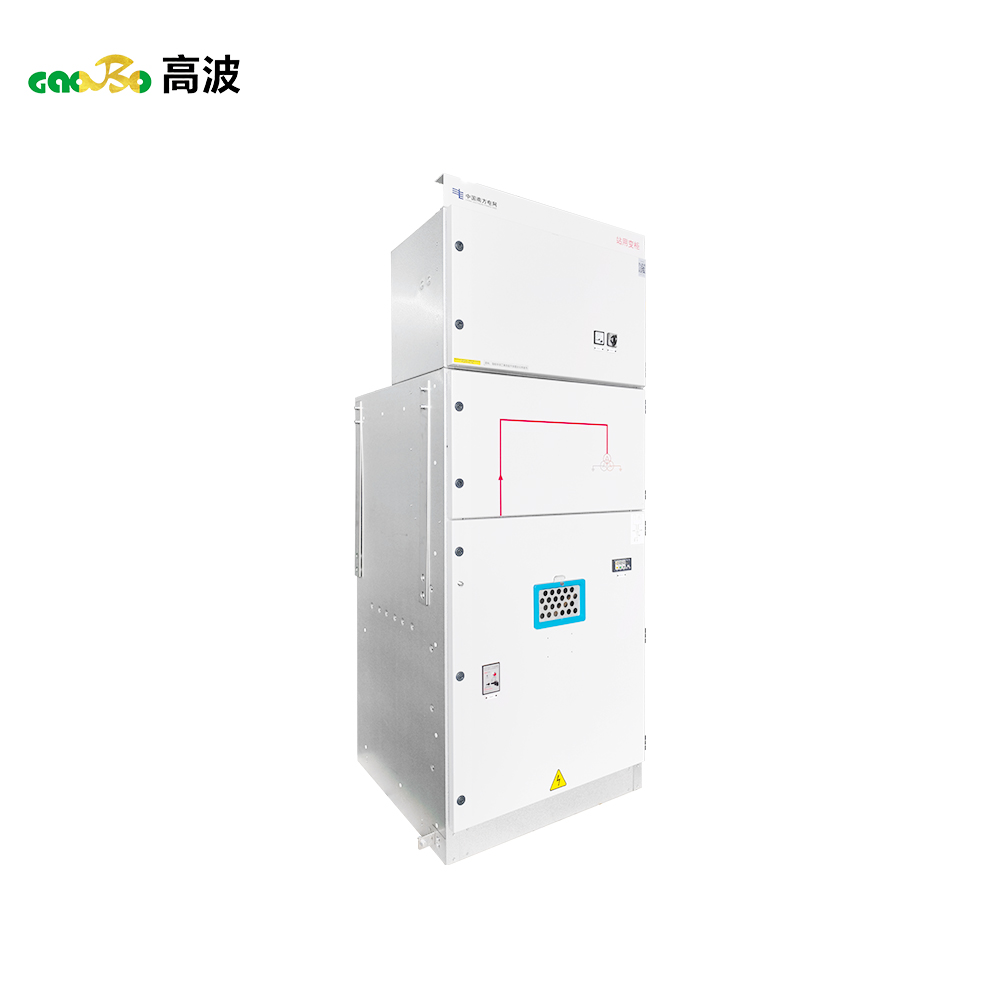

Key Features:

1. Comply with GB/T3906 standard for 12kV medium-voltage switchgear.

2. 12kV rated voltage, 630A rated current, stable and high load capacity.

3. 25kA/4s short-time withstand current & 63kA peak withstand current, strong anti-short-circuit capability.

4. 75kV lightning impulse withstand voltage & 28kV power-frequency withstand voltage, high insulation safety.

5. IP4X protection grade effectively prevents dust and accidental contact.

6. Compact ring-network structure, small footprint, easy installation and maintenance.

7. Fully metal-enclosed and safe design, suitable for indoor and compact power rooms.

8. Factory customizable: configuration, size, protection, interface and appearance.

Main Uses:

• Ring-network power supply and sectionalization for 12kV distribution systems.
• Incoming and outgoing power control and protection for small and medium substations.
• Circuit switching, protection and metering for medium-voltage power distribution.
• Safe operation and fault isolation in urban and industrial power grids.
• Compact power distribution for construction, industry and infrastructure projects.

Application:

• Urban and rural power grid reconstruction & ring-main network
• Industrial parks, factories, manufacturing plants
• Commercial buildings, hospitals, data centers
• Residential quarters, high-rise buildings
• Infrastructure: subway, airport, railway, water plant
• Small and medium-sized distribution substations
• Mining, construction sites and outdoor compact power rooms

Technical Parameters：
